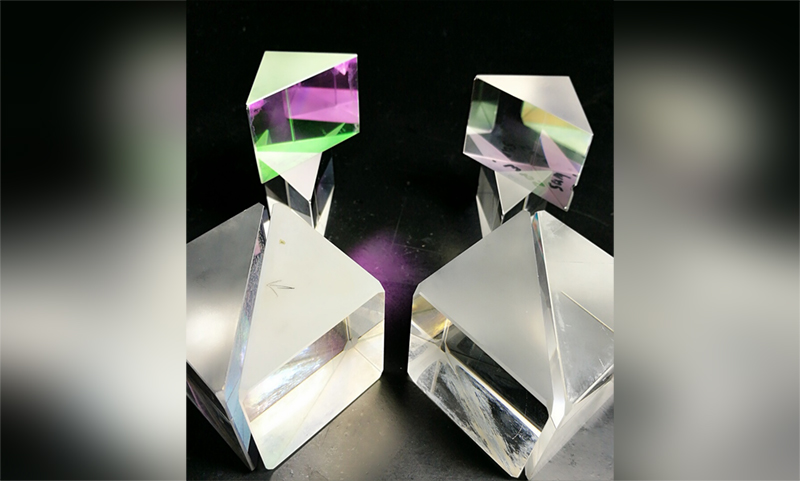

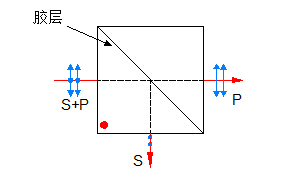

Polarization beam splitting prism (PBS) is mainly used to separate S polarization and P polarization, split the non-polarized incident light into two vertical linearly polarized lights, and the light absorption is negligible. Widely used, high extinction ratio. CR-EW Optic provides a variety of polarization optical prisms such as PBS, which are used in spectrophotometers, interferometers, tunable lasers, etc.
technical parameter
| Material | K9 ZF glass |
| Dimensional tolerance | ±0.1mm |
| Surface Quality | 40/20 |
| Clear aperture | >90% |
| Face shape | <λ/4（25mm)@633nm |
| Beam shift | <3分 |
| Chamfer | 保护性<0.25mmх45° |
| Coating | The glued surface is plated with PBS, and the other surface is plated with antireflection coating |
| Extinction Ratio | Single wavelength>1000:1 Broadband>100:1-1000:1 |
| Through parameters | Single wavelength Tp>95% Ts<1% Broadband Tp>90% Ts<1% |
| Reflection parameter | Single wavelength Rs>99% Rp<5% Broadband Rs>99% Rp<10% |
